Article

Smart Carbon Capture System

Sara Adil Al-Zakwani ORCID ,  Shaik Asif Hussain ORCID ,  Madhav Prabhu ORCID ,  Shaik Karimullah ORCID
    Received: 22 October 2025; Revised: 13 January 2026; Accepted: 9 February 2026; Published: 3 September 2026

    Abstract

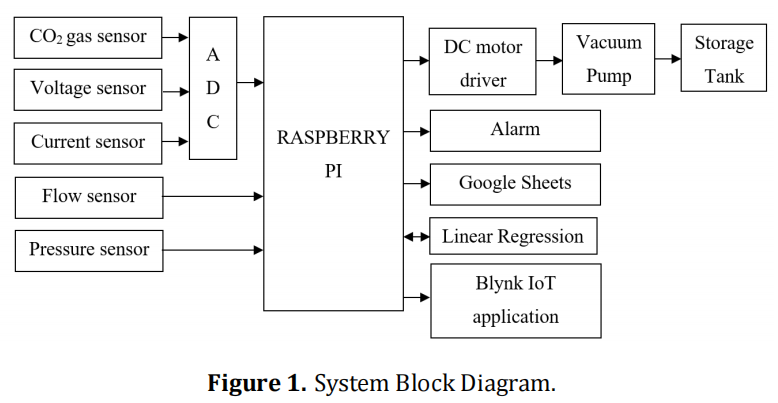

    The adaptive and effective carbon mitigation strategies are needed because atmospheric CO₂ levels have been increasing very quickly since the start of the Industrial Revolution. The paper introduces a Smart Carbon Capture System which combines post combustion carbon capture with Internet of Things (IoT) technologies to support the automation of the control system, real time monitoring and prediction of emission. This system uses gas sensors, flow sensors, pressure sensors, voltage sensors and current sensors connected to the Raspberry Pi Zero 2W, to monitor CO₂ levels, energy consumption and storage conditions continuously. A vacuum air pump is controlled adaptively using the Pulse Width Modulation (PWM) signal that is generated according to the detected CO₂ concentration. This is a linear regression model that is light (because of NumPy's polyfit function) and predicts short time emission behaviour, allowing for adaptive decision making in resource-constrained environments. Real-time visualization and data logging in the cloud are supported by the Blynk platform and Google Sheets. The results of experiments show that it is possible to achieve a capture efficiency higher than 90%, with an adaptive energy consumption ranging from 3 W in conditions of low emission to 11 W in the maximum emission conditions of CO₂. The coefficient of determination R2 is 0.93, which is an indication of the reliability of the emission short-term prediction. The system is a prototype that demonstrates the potential of an adaptive, IoT-enabled carbon capture system and provides a scalable basis for its industrial adoption.

    Keywords

    References

    1. 1. CSIRO. Global carbon dioxide emissions from fossil fuels continue to increase. Available online: https://www.csiro.au/en/news/All/News/2024/November/Global-carbon-dioxide-emissions-from-fossil-fuels-continue-to-increase (accessed on 10 October 2025).
    2. 2. National Grid. What is carbon capture and storage? Available online: https://www.nationalgrid.com/stories/energy-explained/what-is-ccs-how-does-it-work (accessed on 10 October 2025).
    3. 3. Thiedemann, T.M.; Wark, M. A Compact Review of Current Technologies for Carbon Capture as Well as Storing and Utilizing the Captured CO2. Processes 2025, 13, 283. DOI: https://doi.org/10.3390/pr13010283
    4. 4. Grantham Research Institute on Climate Change and the Environment. What is carbon capture, usage and storage (CCUS) and what role can it play in tackling climate change? Available online: https://www.lse.ac.uk/granthaminstitute/explainers/what-is-carbon-capture-and-storage-and-what-role-can-it-play-in-tackling-climate-change/ (accessed on 10 October 2025).
    5. 5. Foreign Ministry of Oman. Oman launches Net Zero 3 initiative in drive for carbon neutrality. Available online: https://www.fm.gov.om/oman-launches-net-zero-3-initiative-in-drive-for-carbon-neutrality/ (accessed on 10 October 2025).
    6. 6. Lebling, K.; Gangotra, A.; Hausker, K.; et al. 7 Things to Know about Carbon Capture, Utilization and Sequestration. Available online: https://www.wri.org/insights/carbon-capture-technology (accessed on 10 October 2025).
    7. 7. Cornelius. Interface MQ gas sensor modules to 3.3V development boards. Available online: https://www.onetransistor.eu/2023/01/mq-sensor-modules-3v3-boards-adc.html (accessed on 10 October 2025).
    8. 8. Soto-Cordova, M.M.; La Cruz, M.R.M.; Mujaico-Mariano, A. An IoT based Urban Areas Air Quality Monitoring Prototype. Int. J. Adv. Comput. Sci. Appl. 2020, 11. DOI: https://doi.org/10.14569/IJACSA.2020.0110985
    9. 9. Gironi, D. MQ gas sensor correlation function against temperature and humidity. Available online: https://davidegironi.blogspot.com/2017/07/mq-gas-sensor-correlation-function.html (accessed on 10 October 2025).
    10. 10. Cuemath. Linear Interpolation Formula. Available online: https://www.cuemath.com/linear-interpolation-formula/ (accessed on 10 October 2025).
    11. 11. Bodekar, R.B. What is Ideal Gas Law? Available online: https://byjus.com/physics/ideal-gas-law-and-absolute-zero/ (accessed on 10 October 2025).
    12. 12. Maung, M.; Latt, M.M.; Nwe, C.M. DC Motor Angular Position Control using PID Controller with Friction Compensation. Int. J. Sci. Res. Publ. 2018, 8. DOI: https://doi.org/10.29322/IJSRP.8.11.2018.p8321
    13. 13. CO2 Meter. Carbon Dioxide Levels Chart. Available online: https://www.co2meter.com/blogs/news/carbon-dioxide-indoor-levels-chart (accessed on 10 October 2025).
    14. 14. Faramarzi, L.; Thimsen, D.; Hume, S.; et al. Results from MEA Testing at the CO2 Technology Center Mongstad: Verification of Baseline Results in 2015. Energy Procedia 2017, 114, 1128–1145. DOI: https://doi.org/10.1016/j.egypro.2017.03.1271
    15. 15. Hussain, S.A.; Chinna Babu, J.; Albassam, N. Wearable and Implantable Electrocardiography for Early Detection of Cardiovascular Diseases; IGI Global: Hershey, PA, USA, 2023.
    16. 16. Hussain, A.K.; Shaik, K.; Khan, M.; et al. Comprehensive methodology to the detection and classification of emotion in human face using EMOTE-Net. Fusion Pract. Appl. 2025, 9, 10–22. DOI: https://doi.org/10.54216/FPA.190102
    17. 17. Fisher, O.J.; Xing, L.; Tian, X.; et al. Responsive CO2 capture: Predictive multi-objective optimization for managing intermittent flue gas and renewable energy supply. React. Chem. Eng. 2024, 9, 235–250. DOI: https://doi.org/10.1039/d3re00544e
    18. 18. Labcenter Electronics Ltd. Proteus: PCB Design and Circuit Simulator Software. Available online: https://www.labcenter.com/ (accessed on 10 October 2025).
    19. 19. Marcoaldi, M. Mobaxtrem review, the tool par excellence of every Linux system administrator. Available online: https://www.managedserver.eu/review-of-mobaxterm-the-tool-par-excellence-of-every-linux-system-administrator/ (accessed on 10 October 2025).
    20. 20. Pourrahmani, H.; Talebi Amiri, M.; Madi, H.; et al. Revolutionizing carbon sequestration: Integrating IoT, AI, and blockchain technologies in the fight against climate change. Energy Rep. 2025, 13, 5952–5967. DOI: https://doi.org/10.1016/j.egyr.2025.05.042
    21. 21. Hussin, F.; Rahim, S.A.N.M.; Hatta, N.S.M.; et al. A systematic review of machine learning approaches in carbon capture applications. J. CO2 Util. 2023, 71, 102474. DOI: https://doi.org/10.1016/j.jcou.2023.102474
    22. 22. Li, G.; Lou, T.; Liu, R.; et al. Integration of Carbon Dioxide Removal (CDR) Technology and Artificial Intelligence (AI) in Energy System Optimization. Processes 2024, 12, 402. DOI: https://doi.org/10.3390/pr12020402
    23. 23. Aliyon, K.; Rajaee, F.; Ritvanen, J. User of artificial intelligence in reducing energy cost of a post-combustion carbon capture plant. Energy 2023, 278, 127834. DOI: https://doi.org/10.1016/j.energy.2023.127834
    24. 24. Natong. Gas Sensor MQ Series Principle. Available online: https://forum.arduino.cc/t/gas-sensors-mq-series-principle/400772 (accessed on 10 October 2025).
    25. 25. Sun, Z.; Liao, J. Application of intelligent self-organizing algorithms in UAV cooperative inspection of power distribution networks. Front. Energy Res. 2024, 12, 1418907. DOI: https://doi.org/10.3389/fenrg.2024.1418907
    26. 26. Tian, H.; Jia, C.; Guo, Y.; et al. Dynamic identification method and engineering verification of power distribution network hazard AI. In Proceedings of the SPIE International Conference on Automation and Intelligent Technology, Wuhan, China, 8–10 August 2025. DOI: https://doi.org/10.1117/12.3083620
    27. 27. Baig, B.; Shahzad, A.Q. Machine Learning and AI Approach to Improve UAV Communication and Networking. In Computational Intelligence for Unmanned Aerial Vehicles Communication Networks; Springer: Cham, Switzerland, 2022. DOI: https://doi.org/10.1007/978-3-030-97113-7_1
    28. 28. Temiz, M.; Zhang, Y.; Fu, Y.; et al. Deep Learning-based Techniques for Integrated Sensing and Communication Systems: State-of-the-Art, Challenges, and Opportunities. arXiv preprint 2025, arXiv:2509.06968. DOI: https://doi.org/10.48550/arXiv.2509.06968
    29. 29. Hashesh, A.O.; Hashima, S.; Zaki, R.M.; et al. AI-Enabled UAV Communications: Challenges and Future Directions. IEEE Access 2022, 10, 92048–92066. DOI: https://doi.org/10.1109/ACCESS.2022.3202956
    30. 30. Bush, S.F. Machine intelligence in the grid. In Smart Grid: Communication-Enabled Intelligence for the Electric Power Grid; John Wiley & Sons: Hoboken, NJ, USA, 2014. DOI: https://doi.org/10.1002/9781118820216.ch11
    ×
